Starting now, PHOTON provides a new way to view plant dashboards.
By generating a dedicated dashboard link, users can watch the dashboard on a computer or smart TV without logging in.
Here’s how:

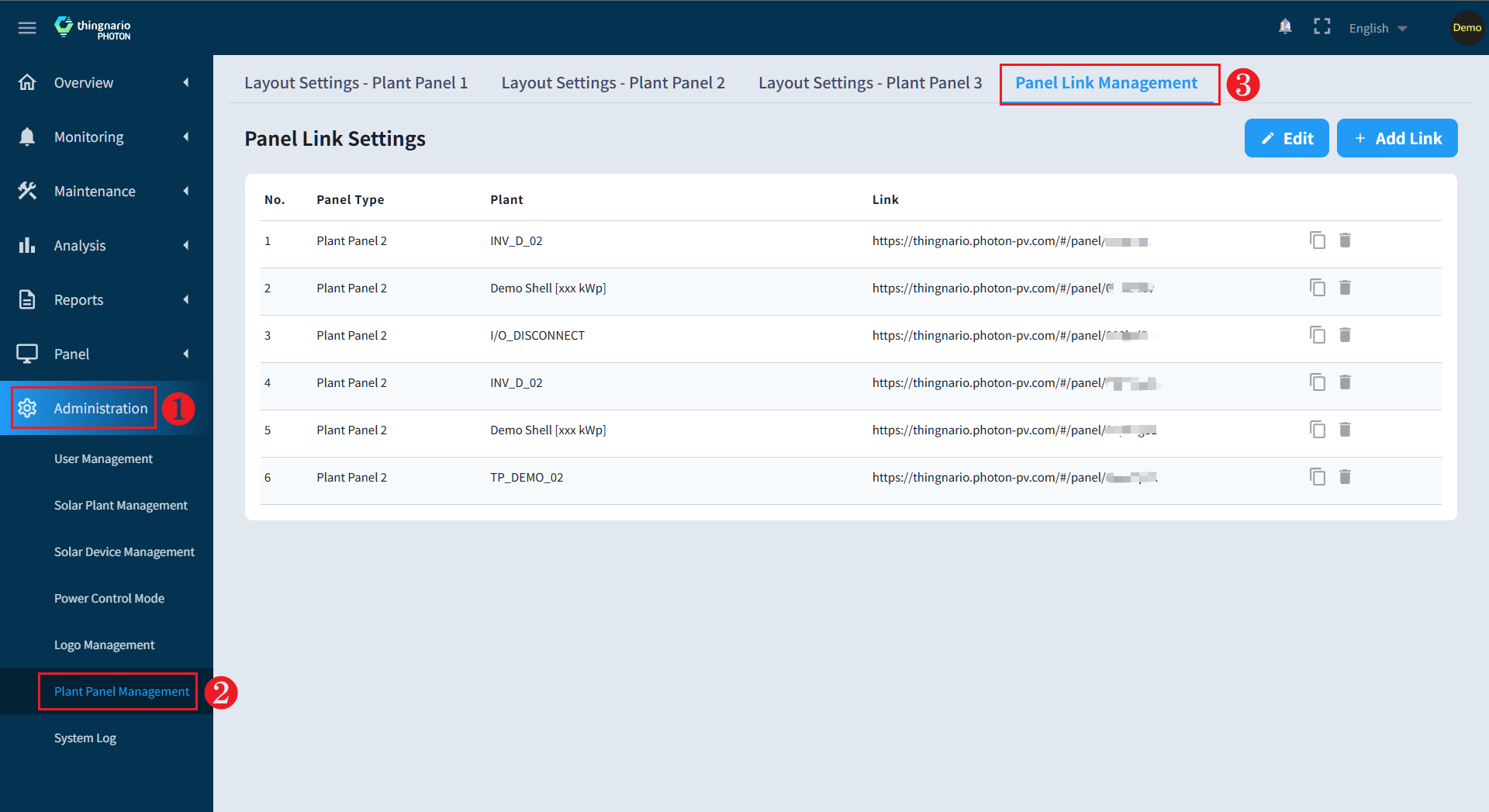

First, log in to PHOTON and go to Administration > Plant Panel Management > Panel Link Management.

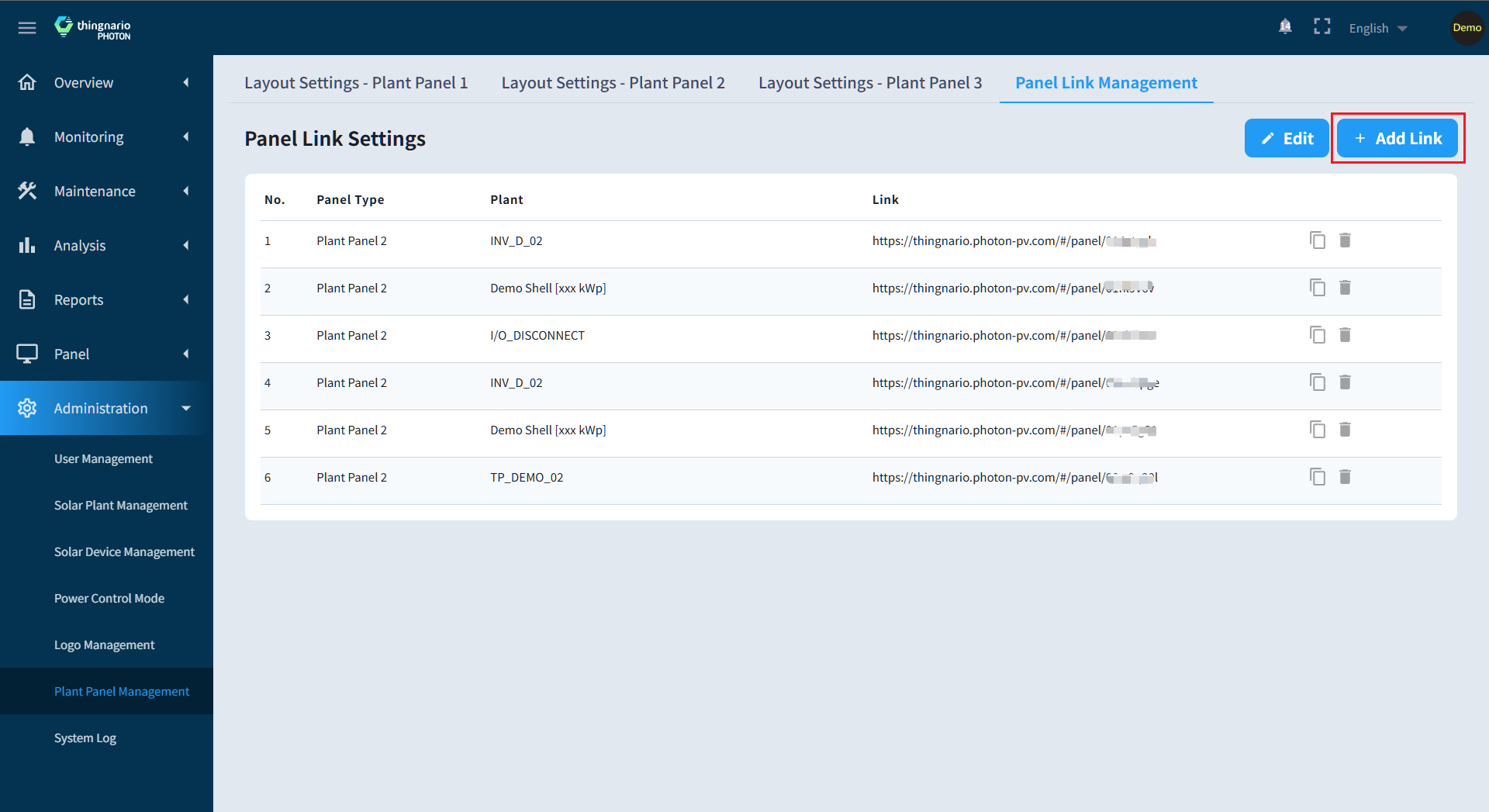

2.Click + Add Link.

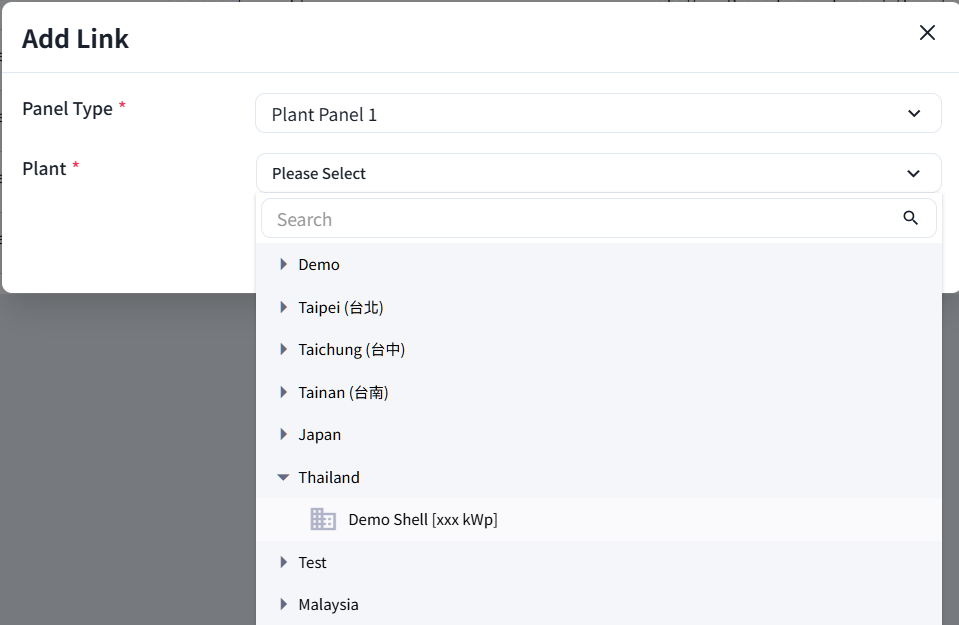

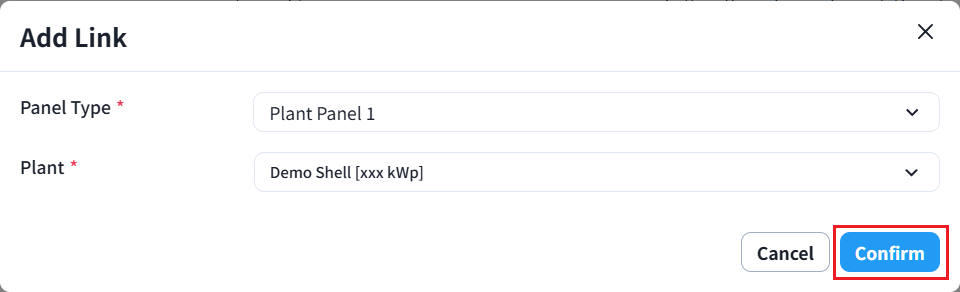

3.Select the type of dashboard you need, then choose the area or plant you want to display. After selecting, click Confirm.

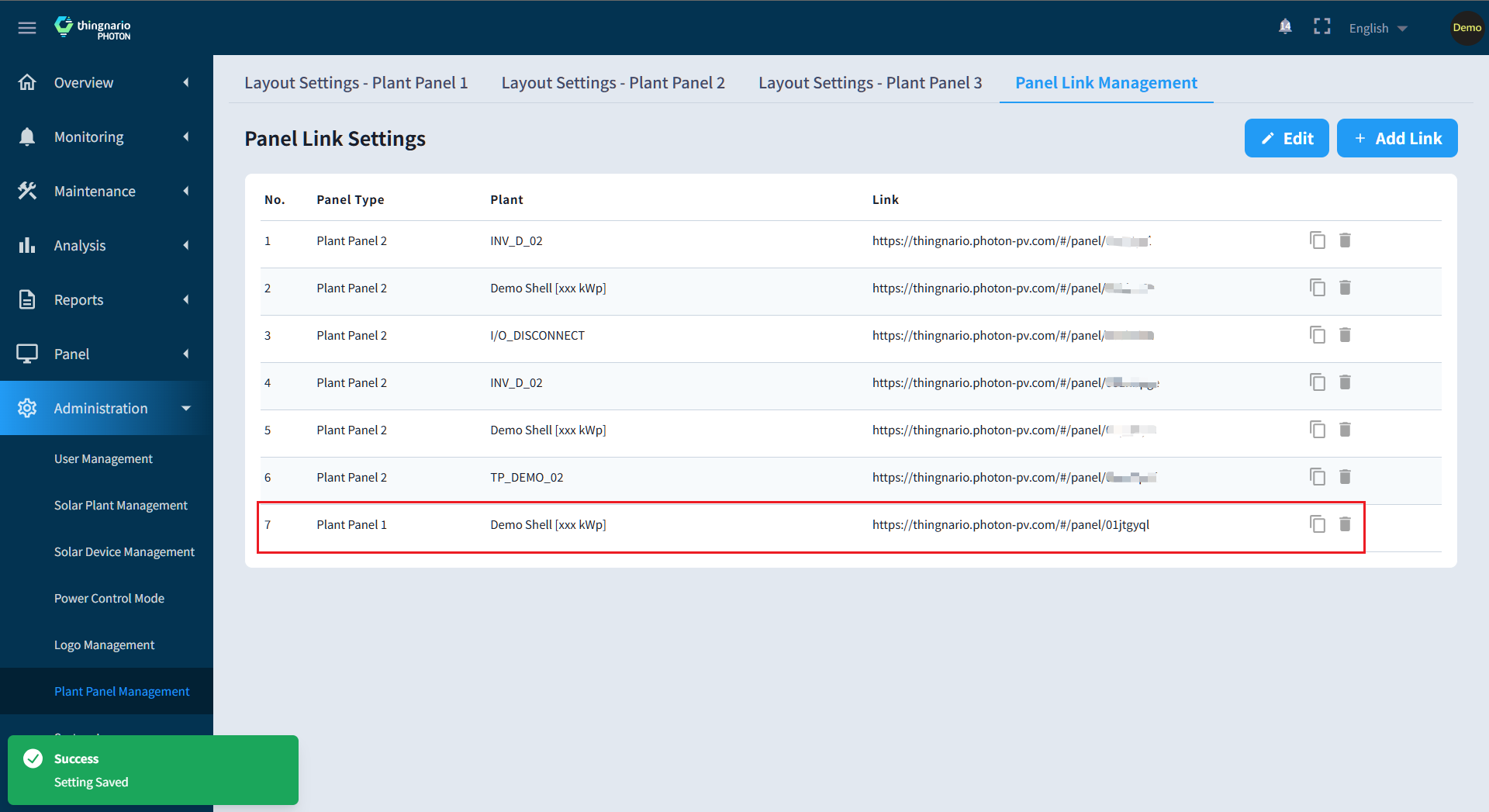

4.Once created, you will see your newly generated dashboard link.
5.Click the Copy icon to copy the link.

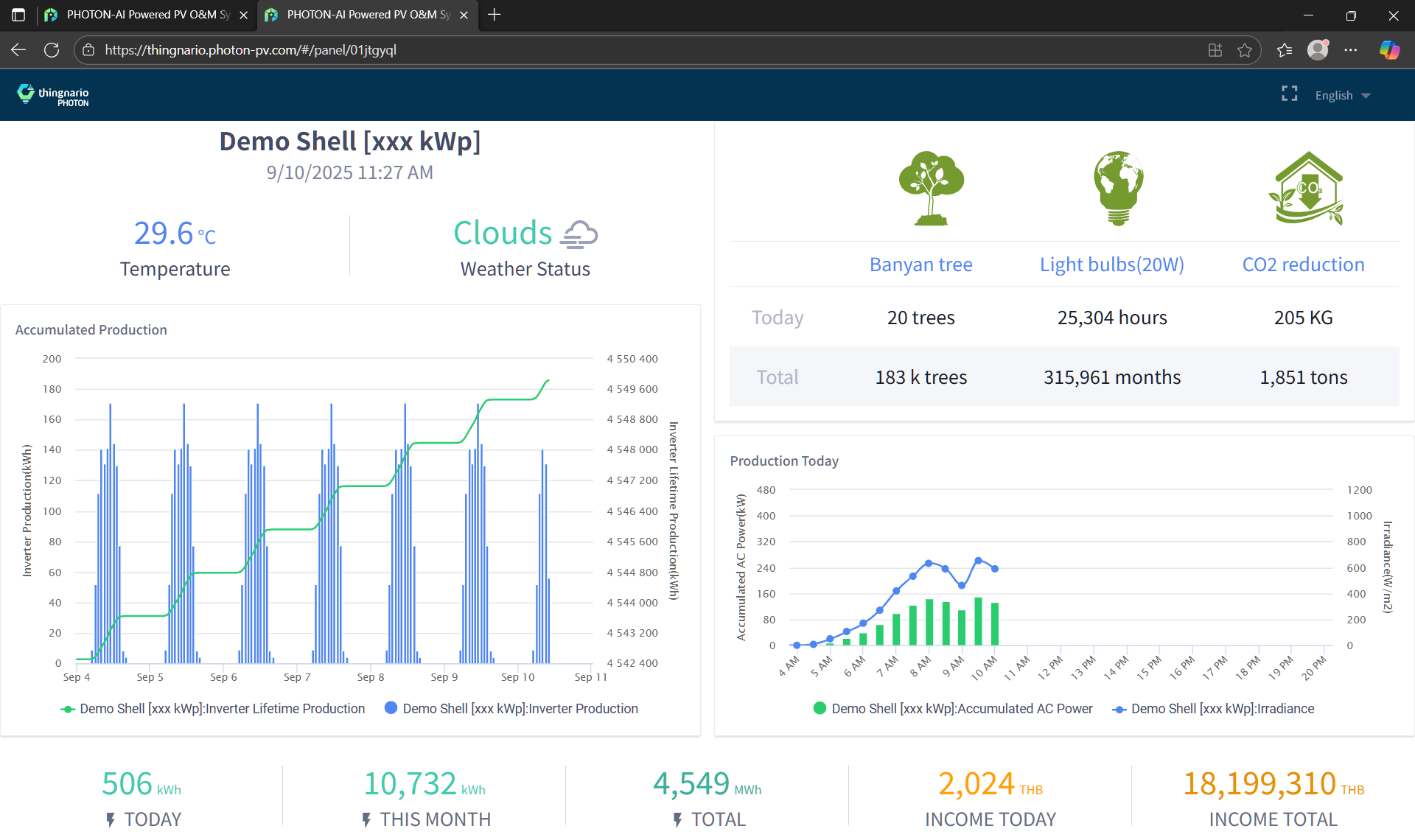

6.Paste the link into a web browser, and the dashboard will start playing immediately.
Note: If the link feels too long and inconvenient to enter on a TV, you can use a third-party URL shortener to make it shorter.
7.If you want to delete a dashboard link, simply click the Delete icon.
If you have any questions regarding the plant dashboard link, please contact Thingnario Support for assistance!
